2HP 115/208-230V 56J THRD UR EE ODP MOTOR (AOS-60-5242)

Call for Price

Category:

Description

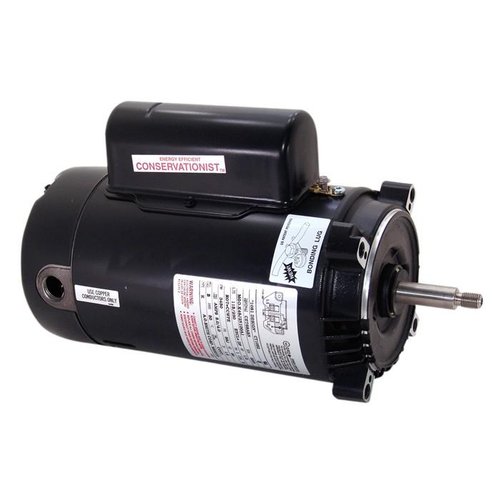

Century(R) Up-Rated Two-Compartment Pool Filter Motor, UAK-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 2 HP, 2.2 THP, 3450 RPM, 56J Frame, Voltage Rating: 115/208-230 V, 19.6/10.4-9.8 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.10 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 2-9/16 Inch, Overall Length: 12.63 Inch, 6-1/2 Inch Diameter, Continuous Duty, High Efficiency Group, Flange Material: Aluminum, Shaft Material: 303 Stainless Steel, Satin Black

Specifications

  • Product # :   AOS-60-5242
  • Mfg :   REGAL BELOIT AMERICA INC
  • Mfg # :   UST1202
  • Department :   PUMPS
  • Product Line :   Motors – Residential
  • UOM ( Default ) :   EA
  • Obsolete :   This product is not obsolete.
  • Ship Weight (lbs) :   31.00
  • Dimensions :   19.50×10.75×9.25
  • UPC Code :   786674033352
