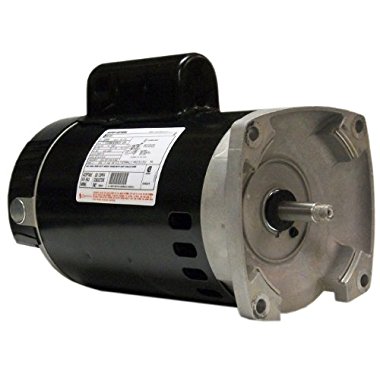

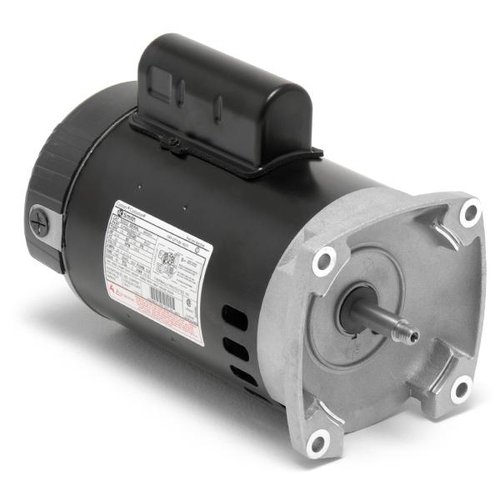

3HP 208-230V 56Y SQFL EE ODP MOTOR (AOS-60-5224)

$399.99

Quantity:
Category:

Description

Century(R) Full-Rated Two-Compartment Pool Filter Motor, CP-Type, Motor Design: Capacitor Start/Run, Open Dripproof Enclosure, 3 HP, 3.45 THP, 3450 RPM, 56Y Frame, Voltage Rating: 208-230 V, 15.4 A, Frequency Rating: 60 Hz, 1-Phase, 1 -Speed, Mounting Type: C-Face, Motor Thermal Protection: Auto, Insulation Class: B, 1.15 Service Factor, Sealed Ball Bearing, Ambient Temperature: 50 deg C, CCWPE Shaft Rotation, Threaded Shaft, Shaft Diameter: 5/8 Inch, Shaft Length: 3/4 Inch, Overall Length: 14.00 Inch, 6-1/2 Inch Diameter, Continuous Duty, Standard Efficiency Group, Square Flange, Shaft Material: 303 Stainless Steel, Black Lacquer

Specifications

  • Product # :   AOS-60-5224
  • Mfg :   REGAL BELOIT AMERICA INC
  • Mfg # :   SQ1302V1
  • Department :   PUMPS
  • Product Line :   Motors – Residential
  • UOM ( Default ) :   EA
  • Obsolete :   This product is not obsolete.
  • Ship Weight (lbs) :   42.95
  • Dimensions :   20.75×11.00×9.00
  • UPC Code :   663001734734
